Breaking It Down
Research | Copy Writing | 3D Modeling | Data Visualization | Illustration & Design
Polyethylene terephthalate (PET) plastics, commonly found in clothing and food containers, normally take centuries to degrade within a natural environment. This molecular visualization explores the process through which two enzymes found in a bacteria called Ideonella sakaiensis work together to break down PET plastics into their base components.
Client : Dr. Derek Ng, University of Toronto
Format : 2-page journal spread
Tools : Autodesk Maya, Adobe Illustrator, Adobe Photoshop, Chimera, Procreate, VMD
Process Work
-
![]()
Ideation

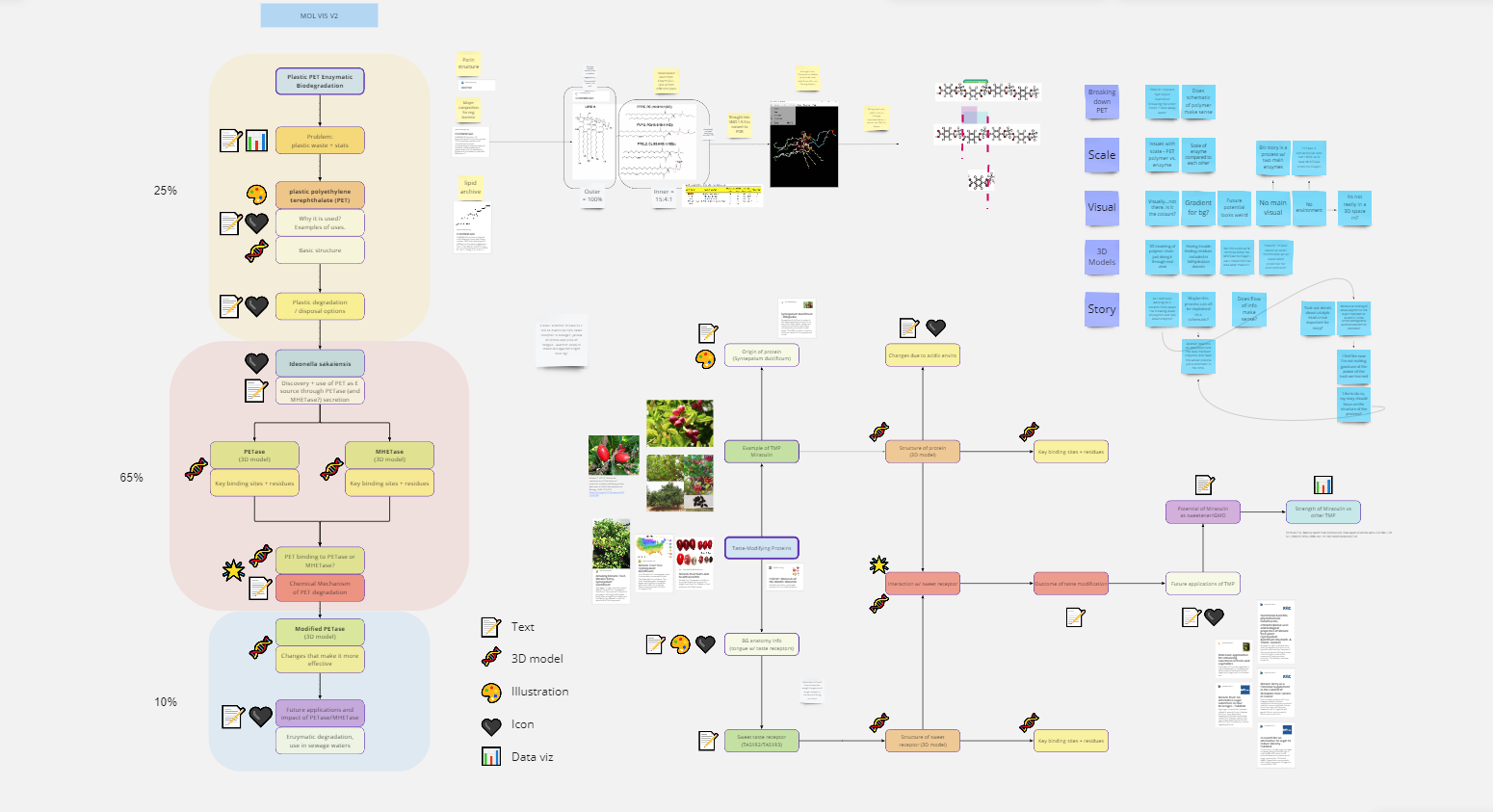

On this brainstorming miro board, I ideated on the story I would tell as well as the general visual format each section of information would take.
-
![]()
Sketches
During the sketch stage, I considered the flow of information and how to provide appropriate context across different scales.
-
![]()
3D Asset Production

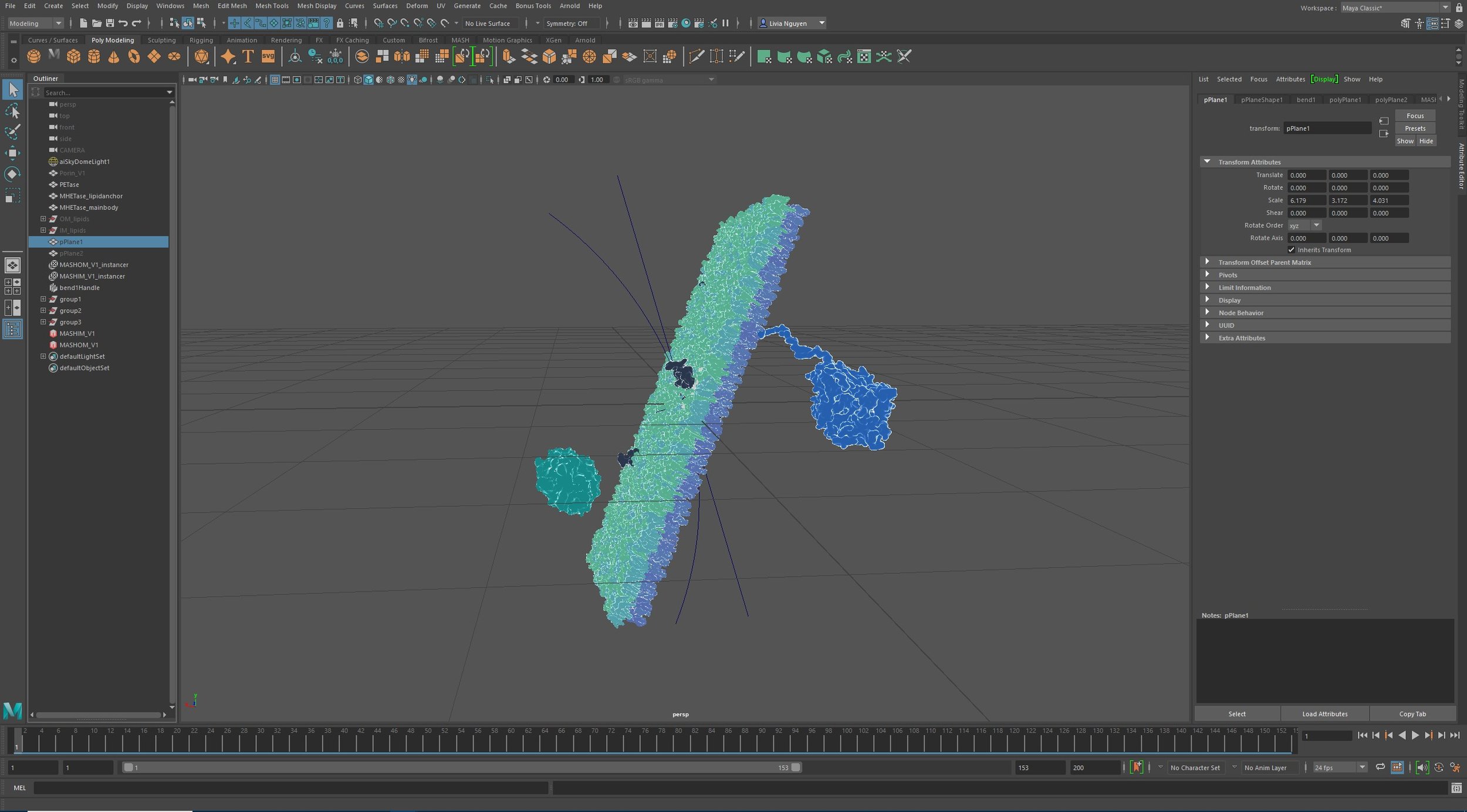

I created the 3D scene of the two enzymes using molecular models from the Protein Data Bank. The cell membrane was created using a MASH network and features a composition accurate to what is found within I. sakaiensis.
-
![]()
Post-processing
The final 3D rendered scene was post-processed in Adobe Photoshop. I made adjustments to the overall lighting and depth of focus to guide the eye toward key areas in the piece.
